MSX-EC-1730 – Fieldbus DAQ System – Counting Imputs

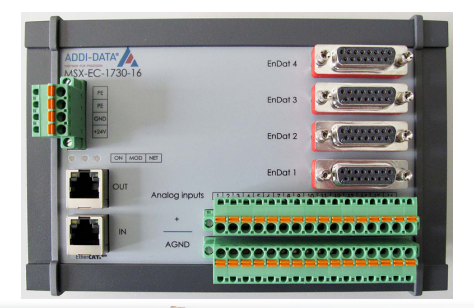

The Endat 2.2 MSX-EC-1730 EtherCAT system for 4 encoders also has 16 inputs, 16 bits, for multiplexed acquisition of current or voltage sensors. It is intended for use close to the measurement point in the field and has numerous protection circuits for this purpose. It also offers 4 digital inputs and 4 digital outputs, 24 Volt, isolated (optional).

Description

Technical specifications

  • Robust and standardized metal housing
  • Energy saving mode : reduction of the consumption when no acquisition is acquisition is in progress

EnDat 2.2 counter inputs

  • 4 inputs, galvanically isolated
  • Integrated power supply
  • Transmission frequency: 2 MHz, data transmission up to 56 bits

Analog inputs

  • 8/16 single-ended inputs, 4/8 differential inputs, 16 bits
  • Acquisition frequency: 5 kHz (fixed)
  • Input range: ± 1 V, ± 2 V, ± 5 V, ± 10 V (programmable)
  • Current inputs (optional)

Acquisition modes

  • Real time signal without trigger condition
  • Synchronized acquisition with the EtherCAT master



Applications

  • Industrial measurement and monitoring
  • Industrial process control
  • Remote diagnostics
  • Chemical process control
  • Factory automation

Interfaces

  • EtherCAT (IN/OUT ports)
  • 24 V power supply
